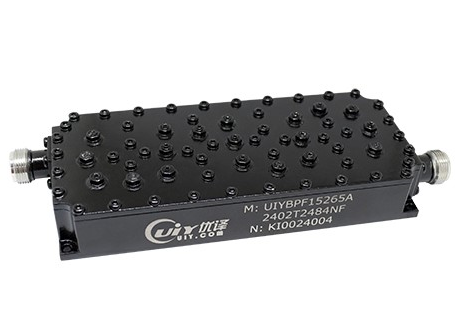

2402 ~ 2484MHz腔体带通滤波器 UIYBPF15265A

带通滤波器 Band Pass Filter

型 号            Model No.: UIYBPF15265A

带通频率    Pass Band: 2402~2484MHz

带外抑制   Rejection: 80dB @DC~2382MHz

80dB @2504~5000MHz

连接形式  Connector: SMA Female or N Female

插损           IL 1.5dB,

带内波纹 Ripple 1.0dB,

驻波比     VSWR 1.5, 100W, -40~+85°C

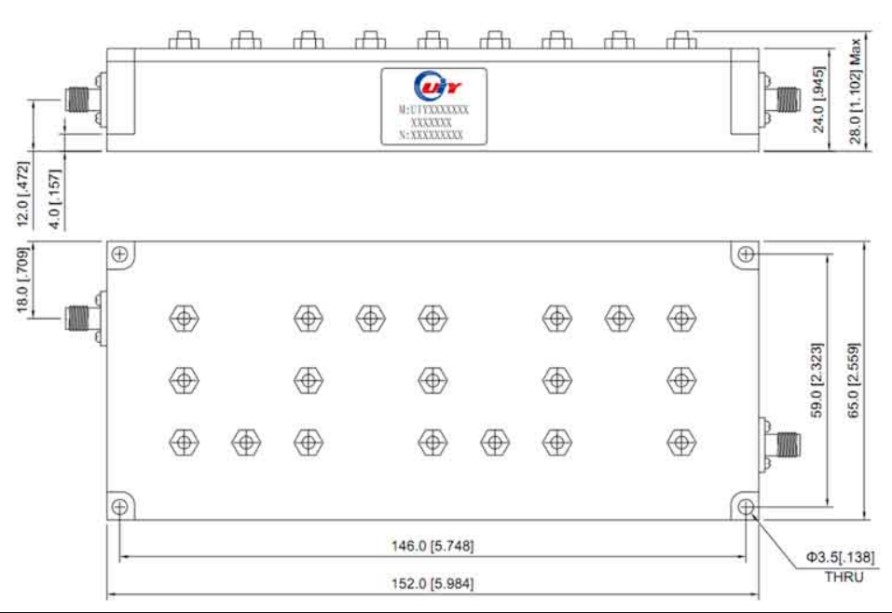

尺寸         Size: 152*65*28mm

制造商    Manufacturer: UIY Inc.

Video: https://youtu.be/H5uRdmaJ8SU
