2路功分器 — UIY2PD2828 系列介绍
2路功分器UIY2PD2828系列工作频率设计范围可覆盖1GHz到8GHz。
UIY2PD2828系列涵盖了L波段1~2GHz、S波段2~4GHz、C波段4~8GHz的七款产品。其中，新型号UIY2PD2828G专为3-6GHz设计，主要用于5G LTE应用。
功率分配器（简称功分器，反向使用时则为合路器）是主要用于无线电技术领域的无源设备。它们将传输线中一定量的电磁功率耦合到一个端口，使信号能够在另一个电路中使用。
The 2 way power divider UIY2PD2828 series works on frequency range from 1GHz to 8GHz.
This series is combined with seven models from L band 1~2GHz, S band 2~4GHz to C band 4~8GHz. Among them, the new model UIY2PD2828G is designed for 3-6GHz specially, which is mainly applied for 5G LTE application.
Power dividers (also power splitters and, when used in reverse, power combiners) are passive devices used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another circuit.
| Model No. | Freq. Range (GHz) | IL (dB) | Isolation (dB) | VSWR Input | VSWR Output | Forward Power(W) | Reverse Power(W) | Connector Type | Temp.(°C) | Dimension LxWxH(mm) |
| UIY2PD2828A1T2SF | 1.0~2.0 | 0.4 | 20 | 1.3 | 1.2 | 30 | 3 | SMA | -55~+85 | 28×28×10 |
| UIY2PD2828B1T4SF | 1.0~4.0 | 0.5 | 20 | 1.3 | 1.3 | 30 | 3 | SMA | -55~+85 | 28×28×10 |
| UIY2PD2828C2T4SF | 2.0~4.0 | 0.4 | 20 | 1.3 | 1.3 | 30 | 3 | SMA | -55~+85 | 28×28×10 |
| UIY2PD2828D2T8SF | 2.0~8.0 | 0.7 | 20 | 1.3 | 1.3 | 30 | 3 | SMA | -55~+85 | 28×28×10 |
| UIY2PD2828G3T6SF | 3.0~6.0 | 0.5 | 25 | 1.3 | 1.3 | 30 | 3 | SMA | -55~+85 | 28×28×10 |
| UIY2PD2828F4T6SF | 4.0~6.0 | 0.4 | 20 | 1.2 | 1.2 | 30 | 3 | SMA | -55~+85 | 28×28×10 |

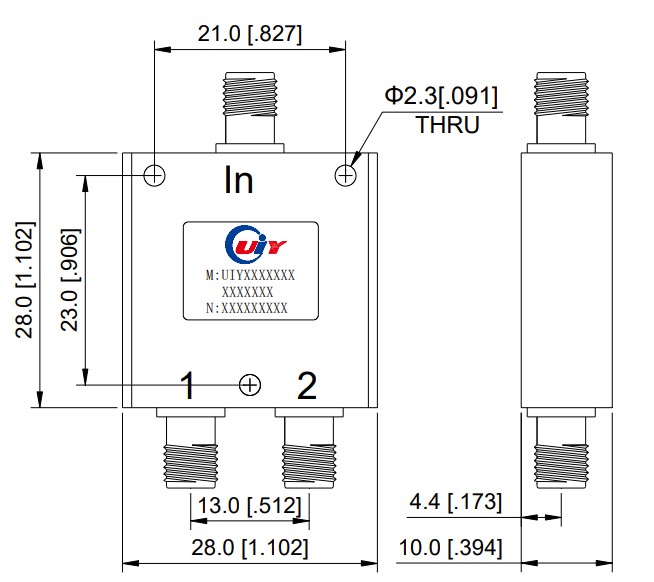

| UIY2PD2828E4T8SF | 4.0~8.0 | 0.5 | 20 | 1.3 | 1.3 | 30 | 3 | SMA | -55~+85 | 28×28×10 |
